Medical Flexible Endoscope

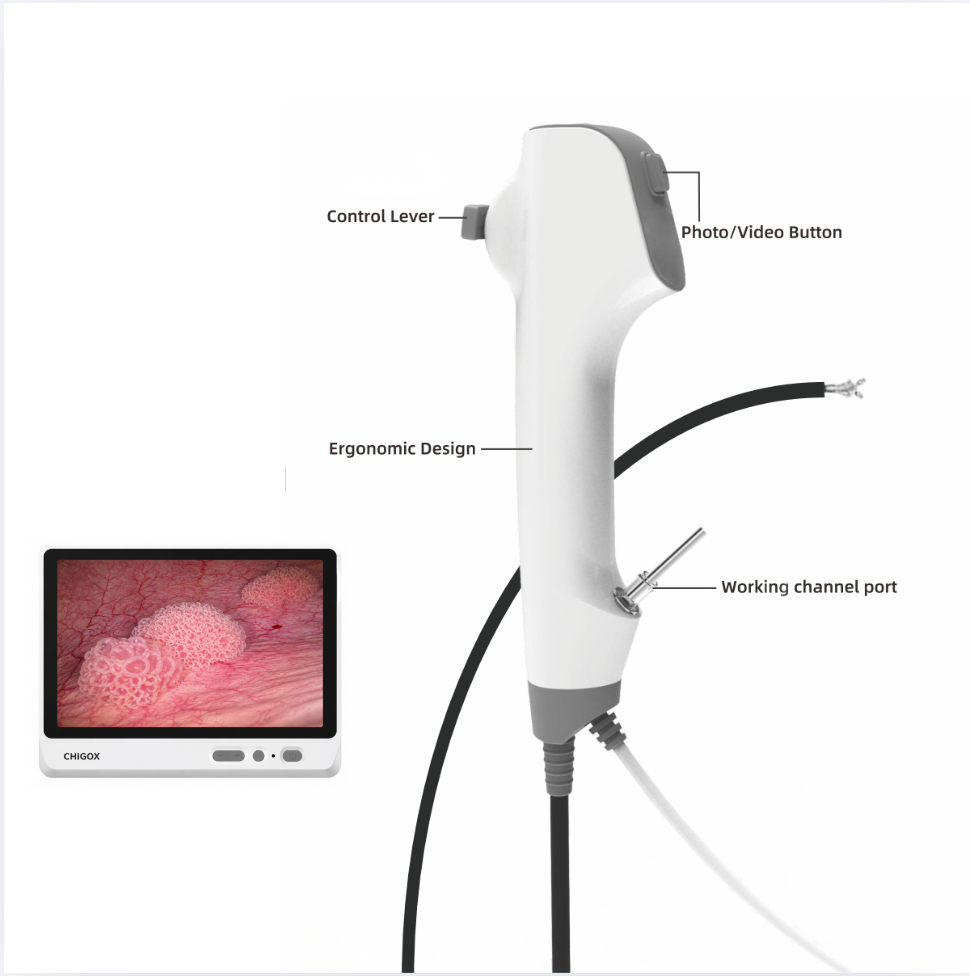

CGC-350D Series Disposable Flexible Cystoscope
A sterile single-use flexible cystoscope for lower urinary tract diagnosis and treatment.
Human Use
Request Quote
Images
Product Images
Overview
Product Overview
The CGC-350D Series Disposable Flexible Cystoscope is designed for minimally invasive diagnosis and treatment of the lower urinary tract.
Featuring high-definition digital imaging, excellent flexibility and a sterile single-use design, the system minimizes the risk of cross infection while providing outstanding visualization and clinical efficiency.
Available in multiple outer diameter configurations, the CGC-350D Series is suitable for hospitals, urology departments, outpatient clinics and ambulatory surgery centers.
Key Features
- Sterile single-use design
- High-definition CMOS digital imaging
- Excellent flexibility and maneuverability
- Multiple diameter configurations
- Large bidirectional tip deflection
- Ergonomic lightweight handle
- Smooth insertion for improved patient comfort
- Compatible with HD endoscopy systems
- No maintenance or reprocessing required
- Reduced risk of cross contamination
Applications
- Bladder examination
- Urethral examination
- Hematuria diagnosis
- Bladder biopsy
- Foreign body inspection
- Urological diagnosis
- Minimally invasive cystoscopy procedures
Specifications
Technical Specifications
| CHIGOX Model | Outer Diameter | Working Channel | Working Length | Field of View | Depth of Field | Tip Deflection | Image Resolution |
|---|---|---|---|---|---|---|---|
| CGC-350D48 | 4.8 mm | 2.2 mm | 380 mm | 120° | 3–100 mm | Up210° / Down120° | HD Digital Imaging |
| CGC-350D52 | 5.2 mm | 2.6 mm | 380 mm | 120° | 3–100 mm | Up210° / Down120° | HD Digital Imaging |
| CGC-350D58 | 5.8 mm | 3.0 mm | 380 mm | 120° | 3–100 mm | Up210° / Down120° | HD Digital Imaging |
Standard Configuration
- Disposable Flexible Cystoscope
- Sterile Packaging
- User Manual
Optional Accessories
- HD Endoscopy Processor
- Medical Monitor
- Endoscopy Workstation
- Medical Trolley
- Biopsy Forceps
- Irrigation Pump
- Recording System
