Medical Rigid Endoscope

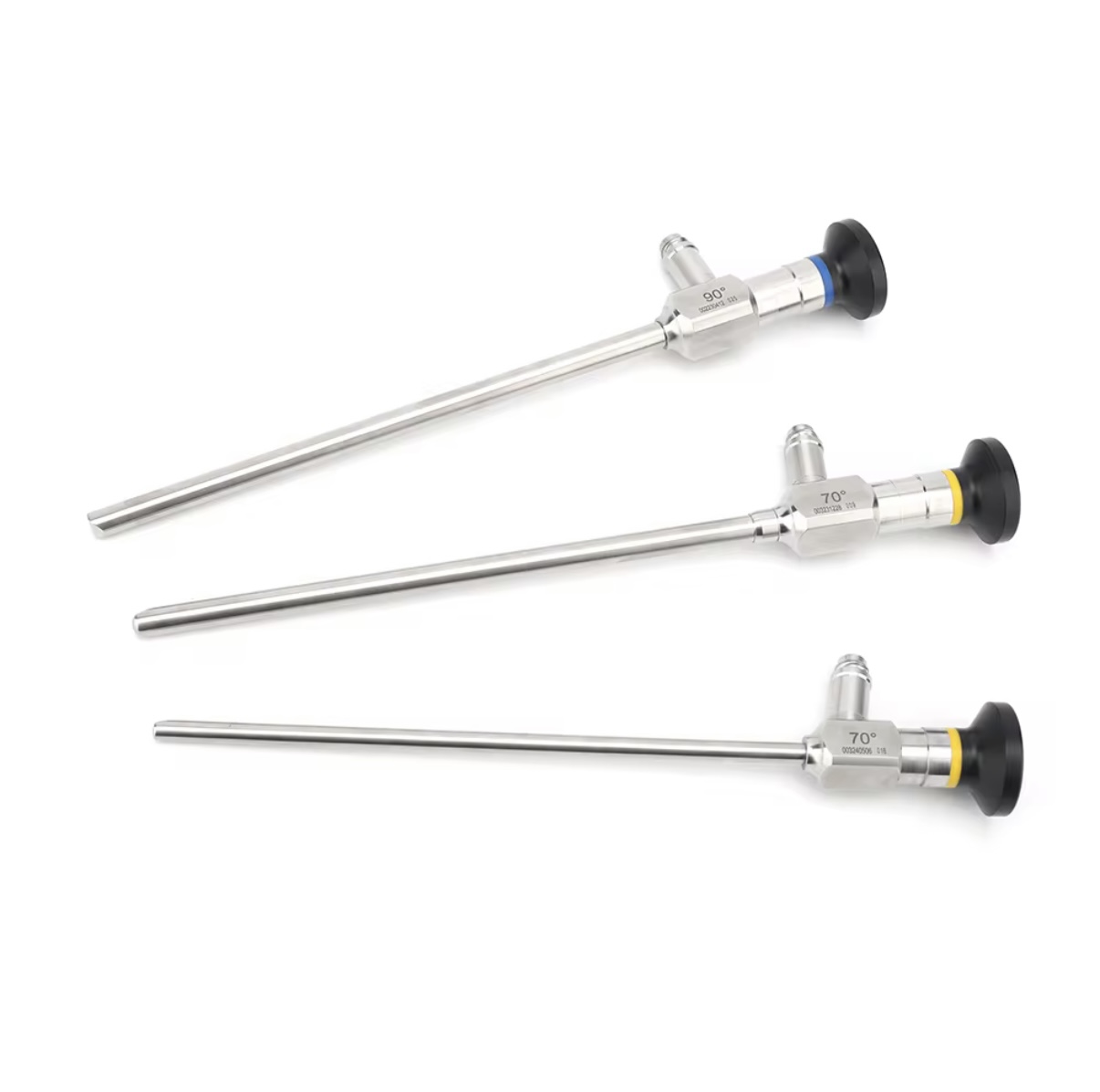

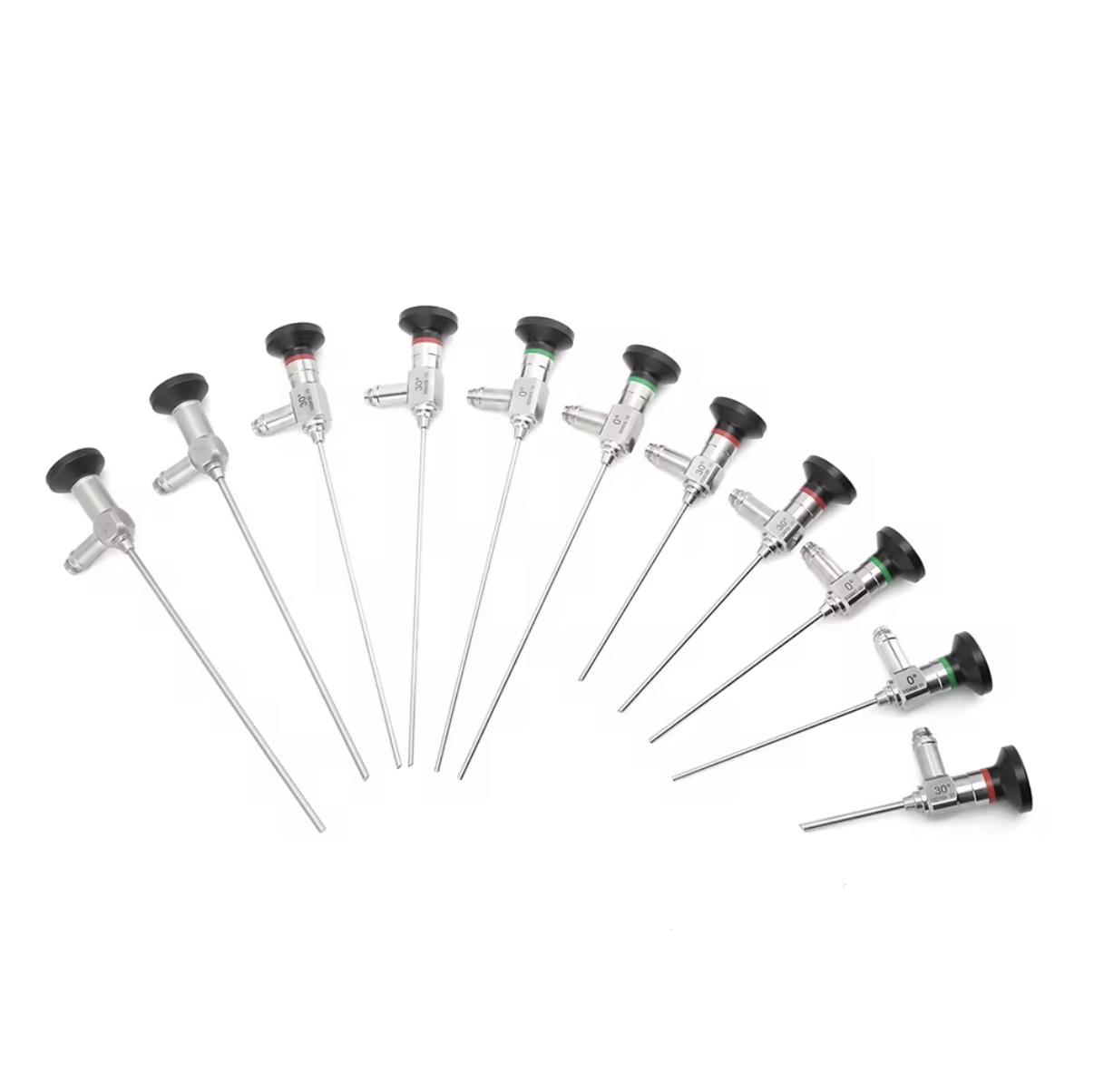

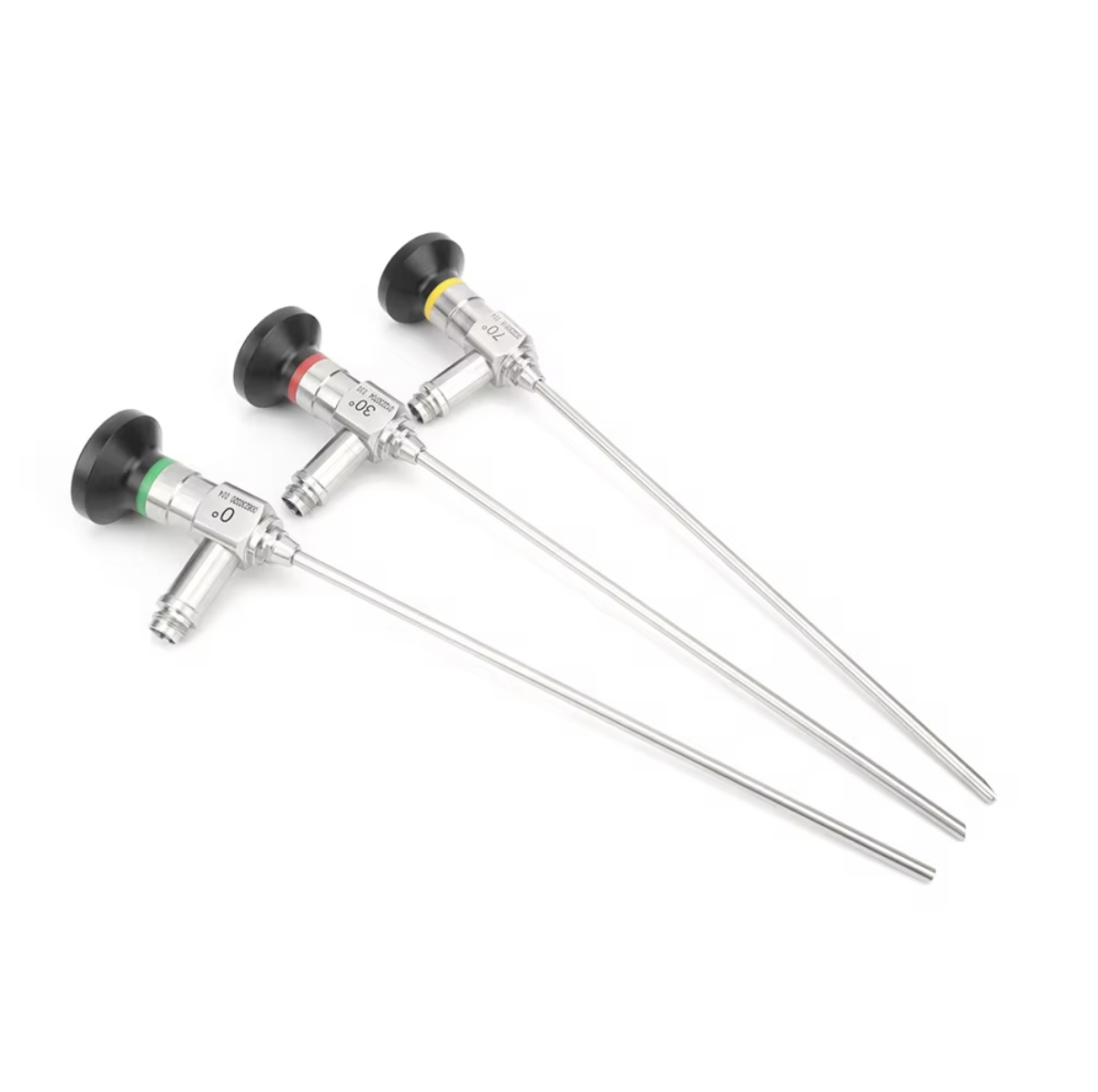

CGR-100 Series Rigid Endoscope
Autoclavable HD rigid endoscopes for minimally invasive diagnosis and surgery across multiple specialties.
Product Images
Product Overview
The CGR-100 Series Rigid Endoscope is designed for minimally invasive diagnosis and surgical procedures across multiple clinical specialties.
The series includes laparoscopes, arthroscopes, cystoscopes, hysteroscopes, sinuscopes, ENT endoscopes and other rigid endoscopes, providing high-definition optical performance, excellent illumination and outstanding durability.
Manufactured with premium optical glass and stainless steel construction, the CGR-100 Series delivers sharp image quality and reliable performance for hospitals, surgical centers and specialist clinics.
Key Features
- High-definition optical imaging
- Sapphire distal window
- Medical-grade stainless steel construction
- Fully autoclavable
- Excellent color reproduction
- High light transmission
- Compatible with standard camera systems
- Multiple viewing angles available
- Multiple diameter configurations
- Designed for minimally invasive surgery
Applications
- General Surgery
- Laparoscopic Surgery
- Arthroscopy
- ENT Surgery
- Sinus Surgery
- Urology
- Gynecology
- Minimally Invasive Surgery
Technical Specifications
| CHIGOX Model | Application | Outer Diameter | Working Length | View Direction | Field of View | Autoclavable |
|---|---|---|---|---|---|---|
| CGR-1800 | ENT Endoscope | 1.8 mm | 100 / 175 mm | 0° | 70° | Yes |
| CGR-2700 | Arthroscope | 2.7 mm | 175 mm | 0° / 30° | 70° | Yes |
| CGR-4000 | Arthroscope | 4.0 mm | 175 mm | 30° / 70° | 70° | Yes |
| CGR-2703 | Cystoscope | 2.7 mm | 300 mm | 30° | 70° | Yes |
| CGR-4003 | Hysteroscope | 4.0 mm | 300 mm | 30° | 70° | Yes |
| CGR-4007 | Sinuscope | 4.0 mm | 175 mm | 70° | 70° | Yes |
| CGR-1000 | Laparoscope | 10 mm | 320 mm | 0° | 80° | Yes |
| CGR-1030 | Laparoscope | 10 mm | 320 mm | 30° | 80° | Yes |
Additional rigid endoscope models can be continuously added to this table as the product portfolio expands.
Standard Configuration
- Rigid Endoscope
- Protective Cap
- User Manual
Optional Accessories
- HD Camera Head
- LED Cold Light Source
- Fiber Optic Light Cable
- Medical Monitor
- Video Processor
- Endoscopy Workstation
- Medical Trolley
- Sterilization Tray
- Endoscopic Instruments
