Medical Flexible Endoscope

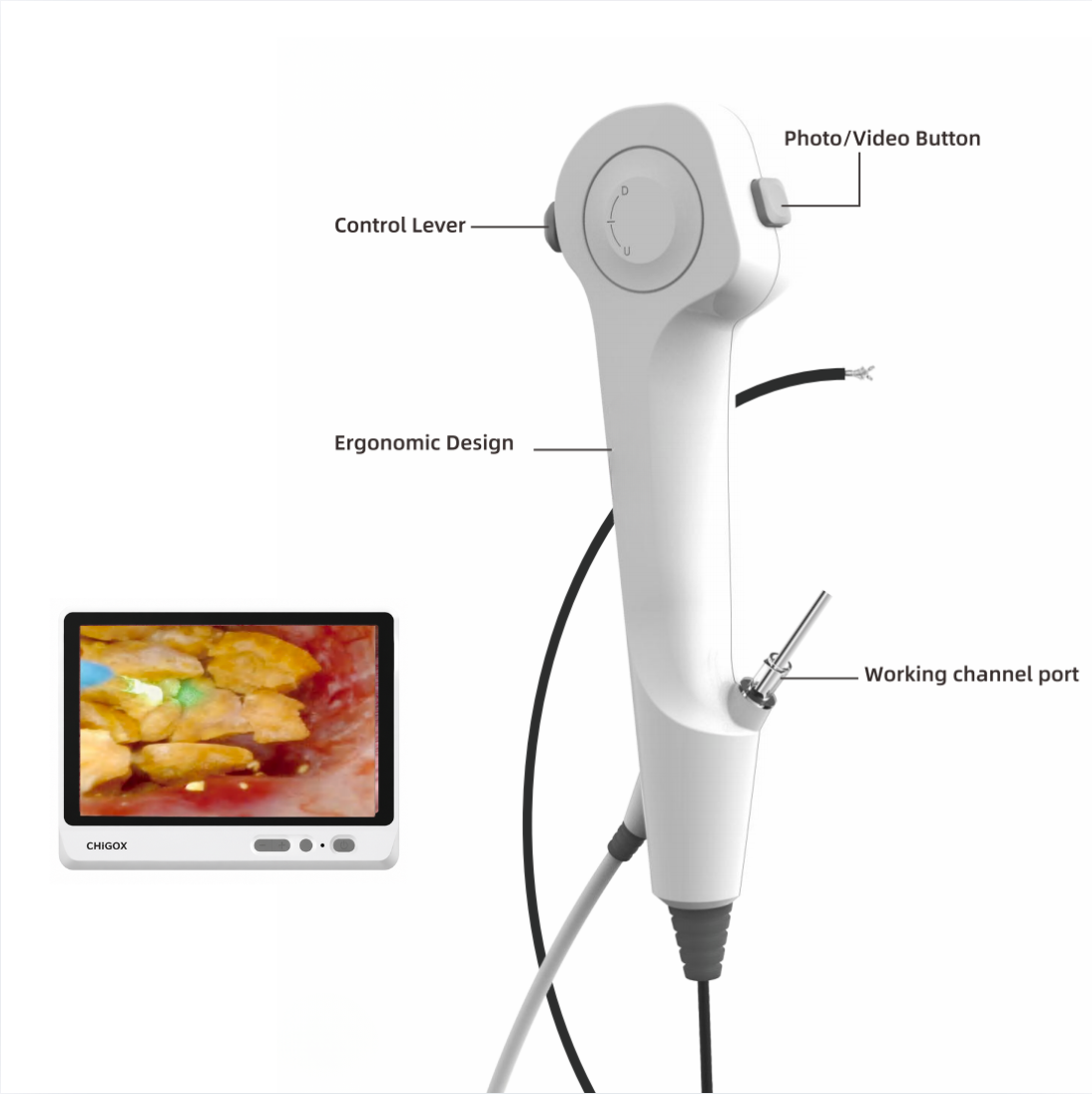

CGU-650D Series Disposable Flexible Ureteroscope
A sterile single-use flexible ureteroscope for minimally invasive urinary tract diagnosis and treatment.
Human Use
Request Quote
Images
Product Images
Overview
Product Overview
The CGU-650D Series Disposable Flexible Ureteroscope is designed for minimally invasive diagnosis and treatment of urinary tract diseases.
With high-definition digital imaging, excellent flexibility and a lightweight disposable design, the system helps reduce the risk of cross infection while improving clinical efficiency.
Multiple outer diameter configurations are available to meet different procedural requirements, making the CGU-650D Series suitable for hospitals, urology departments and ambulatory surgery centers.
Key Features
- Single-use sterile design
- High-definition CMOS imaging
- Excellent flexibility and maneuverability
- 275°–300° bidirectional tip deflection
- Multiple diameter configurations
- Lightweight ergonomic handle
- Excellent irrigation performance
- Compatible with standard endoscopy video processors
- Smooth insertion and easy operation
- Reduced maintenance and reprocessing costs
Applications
- Ureteral stone diagnosis
- Kidney stone examination
- Laser lithotripsy
- Ureteral biopsy
- Urinary tract inspection
- Upper urinary tract intervention
- Minimally invasive urological surgery
Specifications
Technical Specifications
| CHIGOX Model | Outer Diameter | Working Channel | Working Length | Field of View | Depth of Field | Tip Deflection | Image Resolution |
|---|---|---|---|---|---|---|---|
| CGU-650D20 | 2.0 mm | 0.8 mm | 650 mm | 90° | 2–50 mm | Up300° / Down300° | 400 × 400 |
| CGU-650D22 | 2.2 mm | 1.2 mm | 650 mm | 90° | 2–50 mm | Up300° / Down300° | 400 × 400 |
| CGU-650D25 | 2.5 mm | 1.2 mm | 650 mm | 90° | 2–50 mm | Up275° / Down275° | 400 × 400 |
| CGU-650D28 | 2.8 mm | 1.2 mm | 650 mm | 90° | 2–50 mm | Up275° / Down275° | 400 × 400 |
Standard Configuration
- Disposable Flexible Ureteroscope
- Sterile Packaging
- User Manual
Optional Accessories
- Endoscopy Video Processor
- Medical Monitor
- Endoscopy Workstation
- Medical Trolley
- Stone Retrieval Basket
- Biopsy Forceps
- Irrigation Pump
- Light Source (if required by system)
