Turbine-Driven Mechanical Ventilation
- No external driving gas required
- High-performance turbine technology
- Stable and precise ventilation control
- Ultra-quiet operation
- Suitable for animals up to 150 kg
Veterinary Anesthesia & Ventilation System
CGVET-A220T Veterinary Anesthesia Workstation
A next-generation platform integrating anesthesia delivery, turbine-driven mechanical ventilation, intelligent respiratory monitoring and advanced clinical workflow management.
Veterinary UsePremium WorkstationTurbine Ventilation
Request Quote
Images
Product Images

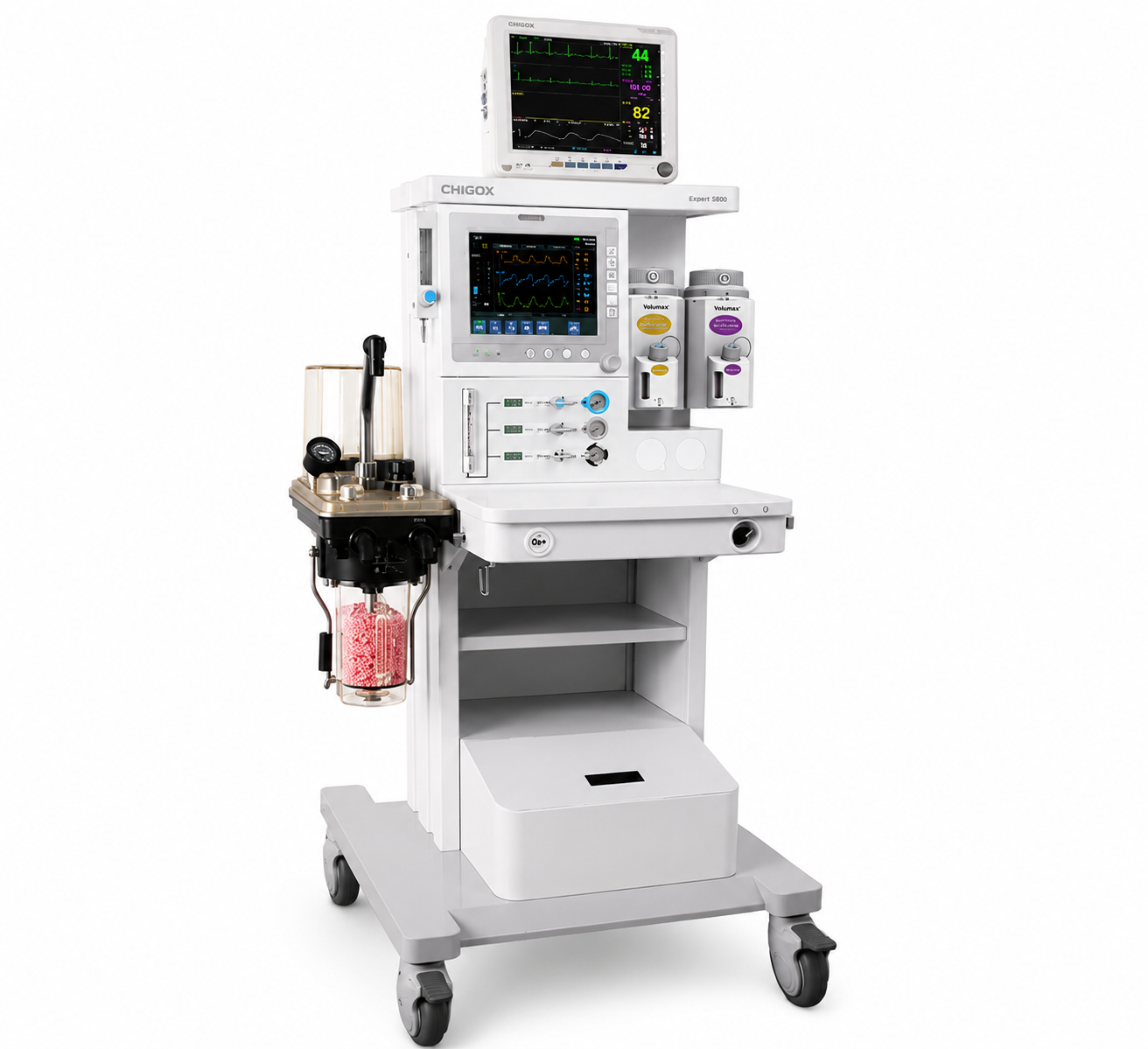

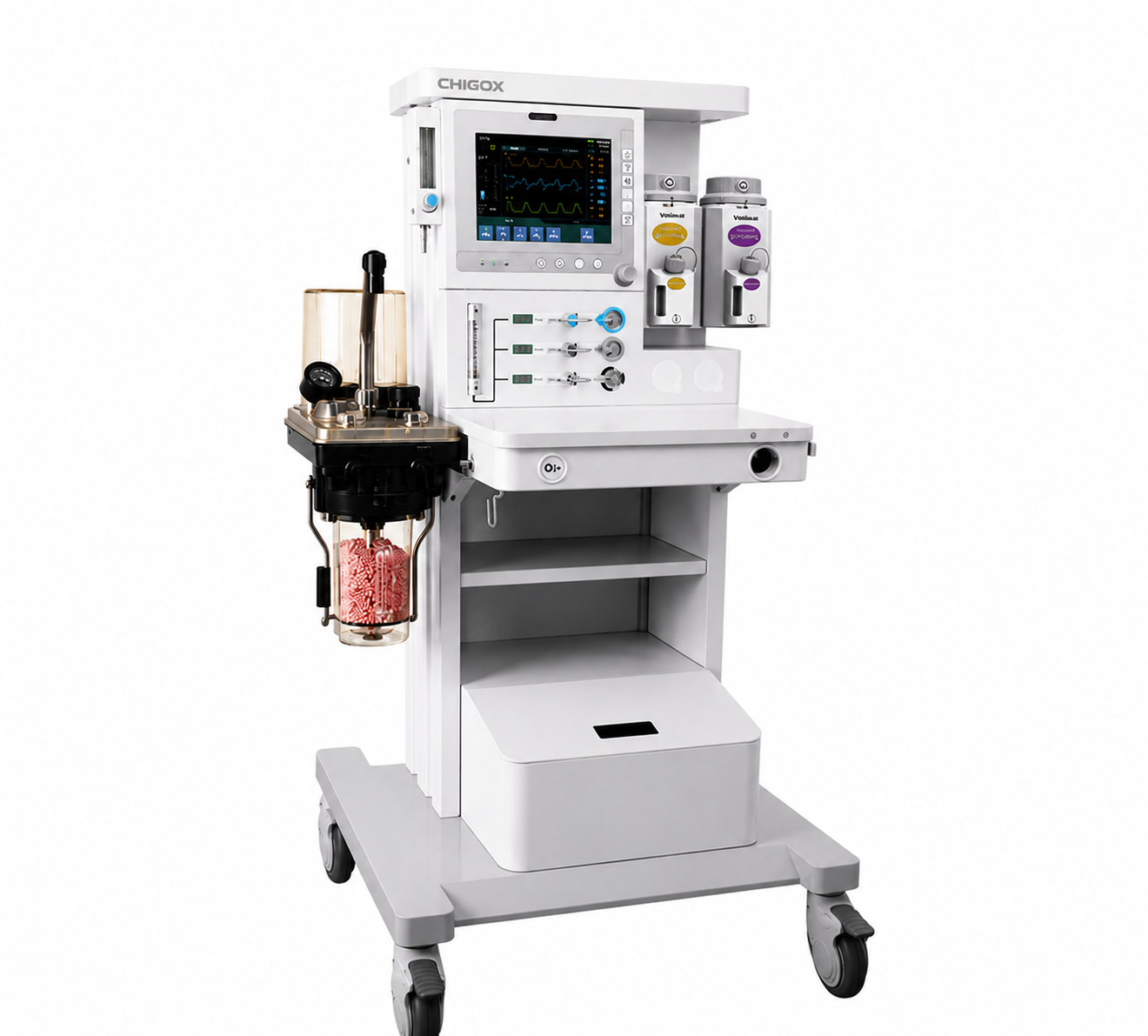

Standard workstation and optional patient monitor configuration.
Overview
Advanced Veterinary Anesthesia, Ventilation and Monitoring
CGVET-A220T is a next-generation veterinary anesthesia workstation integrating anesthesia delivery, turbine-driven mechanical ventilation, intelligent respiratory monitoring and advanced clinical workflow management.
Powered by a high-performance turbine ventilation system, the workstation eliminates the need for external driving gas while providing precise and stable ventilation support for animals ranging from small exotic pets to large animals up to 150 kg.
The integrated platform combines anesthesia management, ventilation control, patient monitoring and waste gas management into one compact solution, making it ideal for advanced veterinary hospitals, specialty referral centers, universities and research institutions.
Key Features
Built for Modern Veterinary Surgery
Intelligent Ventilation Platform
- Multiple advanced ventilation modes
- Minimum tidal volume as low as 5 ml
- Suitable for small, medium and large animals
- Supports complex anesthesia procedures
High-Definition User Interface
- 10.3-inch HD capacitive touchscreen
- Multi-waveform monitoring display
- Loop graphics visualization
- Glove-friendly operation
High-Precision Vaporizer System
- Quick vaporizer replacement design
- Supports multiple anesthetic agents
- Fast installation and maintenance
Integrated Smart Breathing Circuit
- Built-in dual sensor architecture
- Real-time physiological monitoring
- Rebreathing and non-rebreathing switching
- Airway pressure monitoring in all modes
Flexible Waste Gas Management
- AGSS compatibility
- Waste gas evacuation system
- Waste gas filter canister options
Ventilation
Comprehensive Ventilation Modes
Select the appropriate respiratory support strategy for different animal species and anesthesia procedures.
| Manual | VCV | PCV | SIMV-VC | SIMV-PC |
|---|---|---|---|---|
| PRVC | CPAP-PSV | AUTO-VS | CT Mode | ACGO |
Monitoring
Advanced Monitoring Capabilities
Optional monitoring solutions provide comprehensive respiratory and anesthetic information for safer anesthesia management.
Optional Modules
- Mainstream COâ‚‚ Monitoring
- Sidestream COâ‚‚ Monitoring
- Multi-Gas Monitoring
- Anesthetic Gas Monitoring
- Respiratory Waveform Analysis
- Loop Analysis Display
Integrated Clinical View
The 10.3-inch HD interface combines ventilation settings, real-time waveforms and loop graphics in a glove-friendly workflow. An optional veterinary patient monitor can be configured for expanded perioperative monitoring.
Advantages
Workstation Advantages
Precision Ventilation
Minimum tidal volume down to 5 ml enables accurate ventilation for small patients while maintaining stable performance for larger animals.
Intelligent Workflow
The integrated touchscreen interface simplifies anesthesia management and reduces operator workload.
Flexible Clinical Applications
Suitable for companion animal hospitals, referral centers, veterinary universities, research institutions and advanced surgical suites.
Future-Proof Platform
Optional monitoring modules and accessories allow the system to be upgraded according to clinical requirements.
Applications
Clinical Applications
- Veterinary Hospitals
- Referral Animal Centers
- Veterinary Universities
- Animal Research Institutions
- Advanced Veterinary Surgery
- Orthopedic Surgery
- Soft Tissue Surgery
- Thoracic Surgery
- Long-Duration Anesthesia Procedures
Standard Configuration
- CGVET-A220T Main Workstation
- Turbine Ventilation System
- 10.3-inch Touchscreen
- Oxygen Flowmeter
- Integrated Breathing Circuit
- Airway Pressure Gauge
- High-Precision Vaporizer
- Mobile Trolley
Optional Accessories
- COâ‚‚ Monitoring Module
- AG Monitoring Module
- Additional Vaporizers
- AGSS System
- Waste Gas Filter Canister
- Waste Gas Exhaust Pipe
- Oxygen Generator
- Auxiliary Oxygen Cylinder
- Veterinary Patient Monitor
Request Quote
Configure CGVET-A220T for Your Facility
Share the animal weight range, surgical applications and monitoring requirements. The CHIGOX team will follow up by email.
