CGU-L Wireless Handheld Linear Ultrasound Scanner

CGU-L is a wireless handheld linear ultrasound scanner designed for vascular, musculoskeletal, soft tissue, nerve, and other superficial imaging applications.

Human Use

Request Quote

CGU-L Wireless Handheld Linear Ultrasound Scanner

Images

Product Images

CGU-L Wireless Handheld Linear Ultrasound Scanner image 1

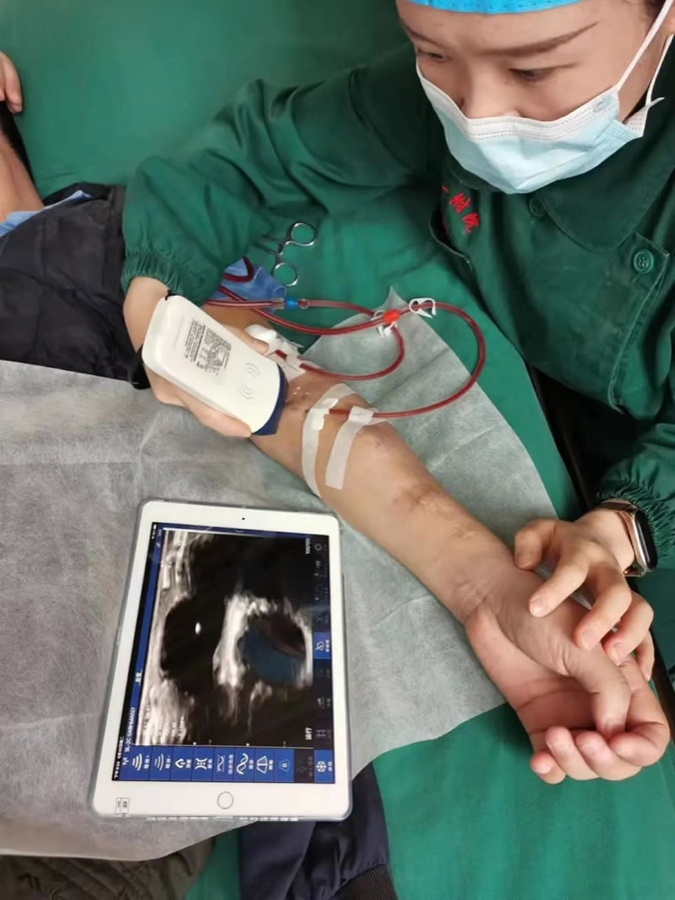

CGU-L Wireless Handheld Linear Ultrasound Scanner image 2

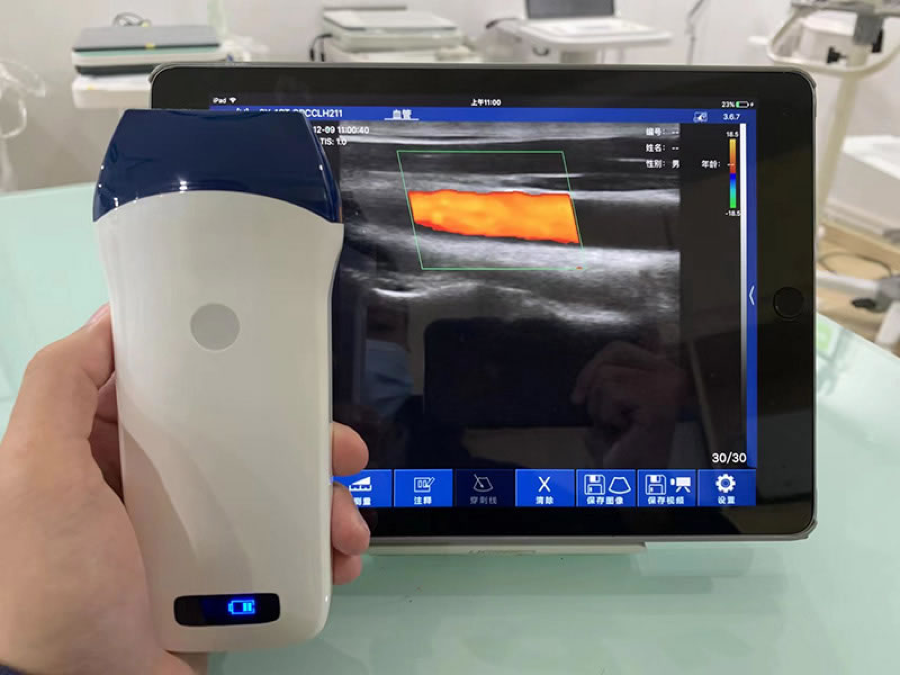

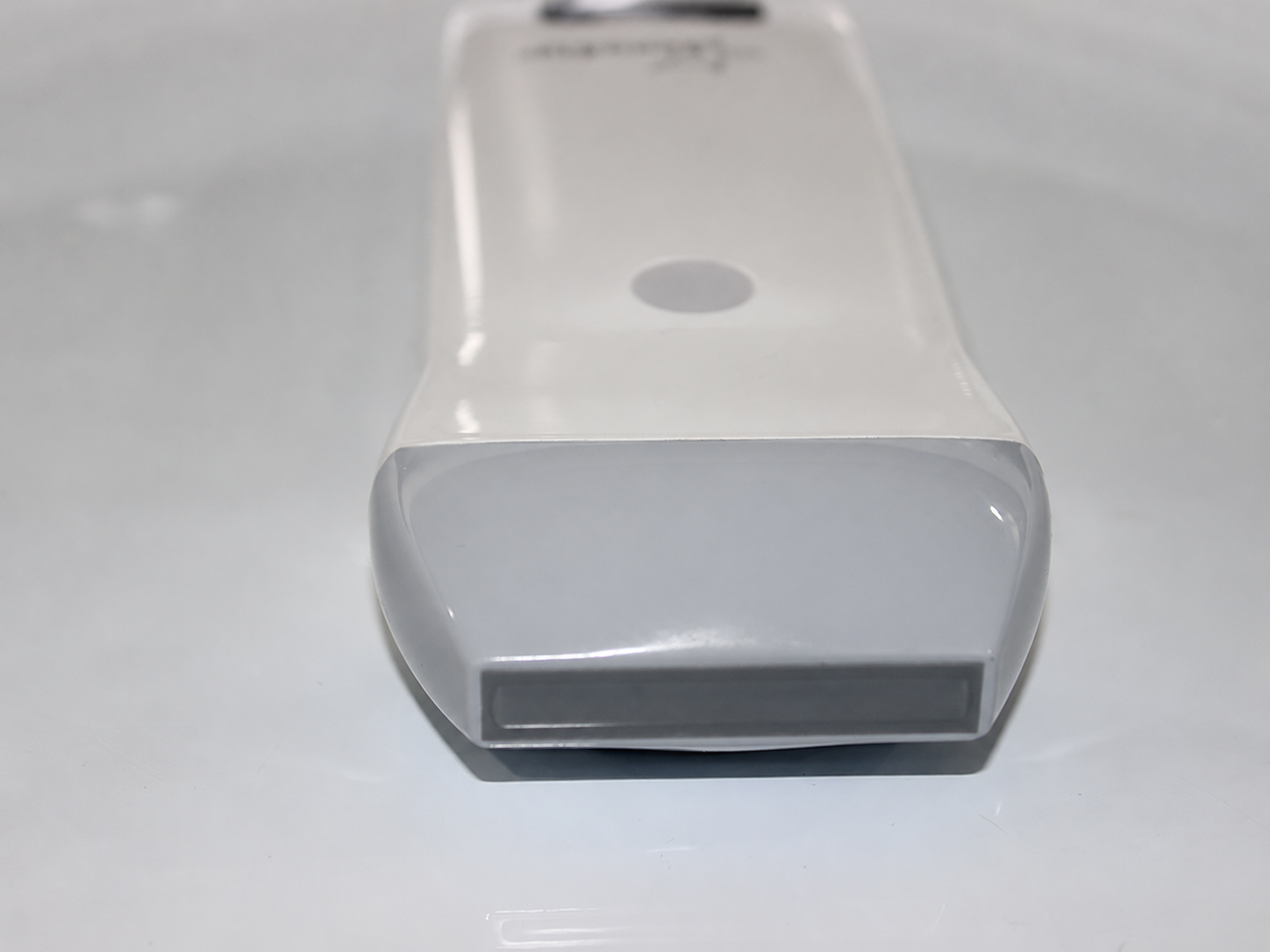

CGU-L Wireless Handheld Linear Ultrasound Scanner image 3

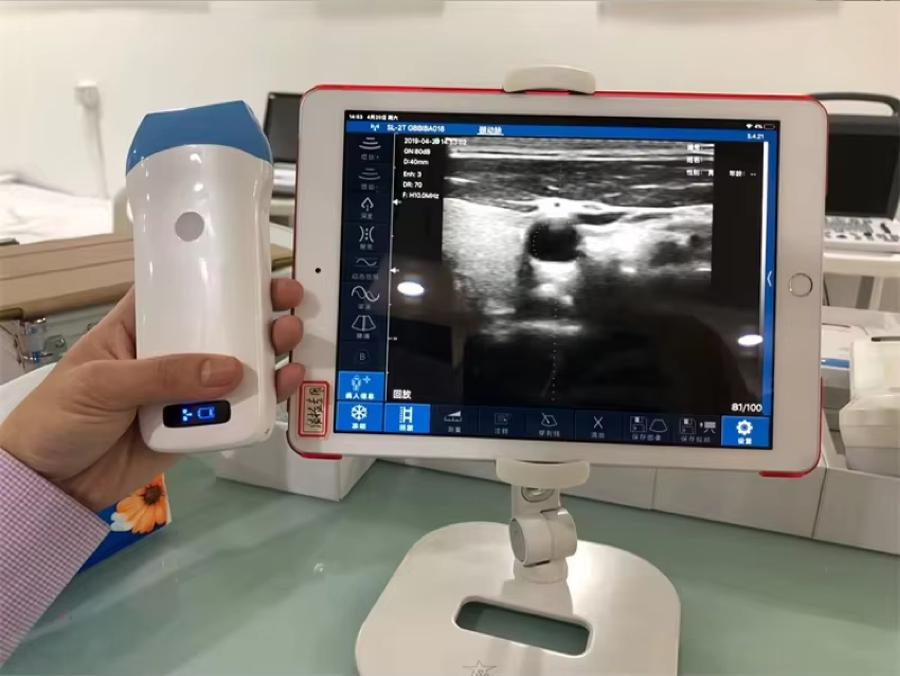

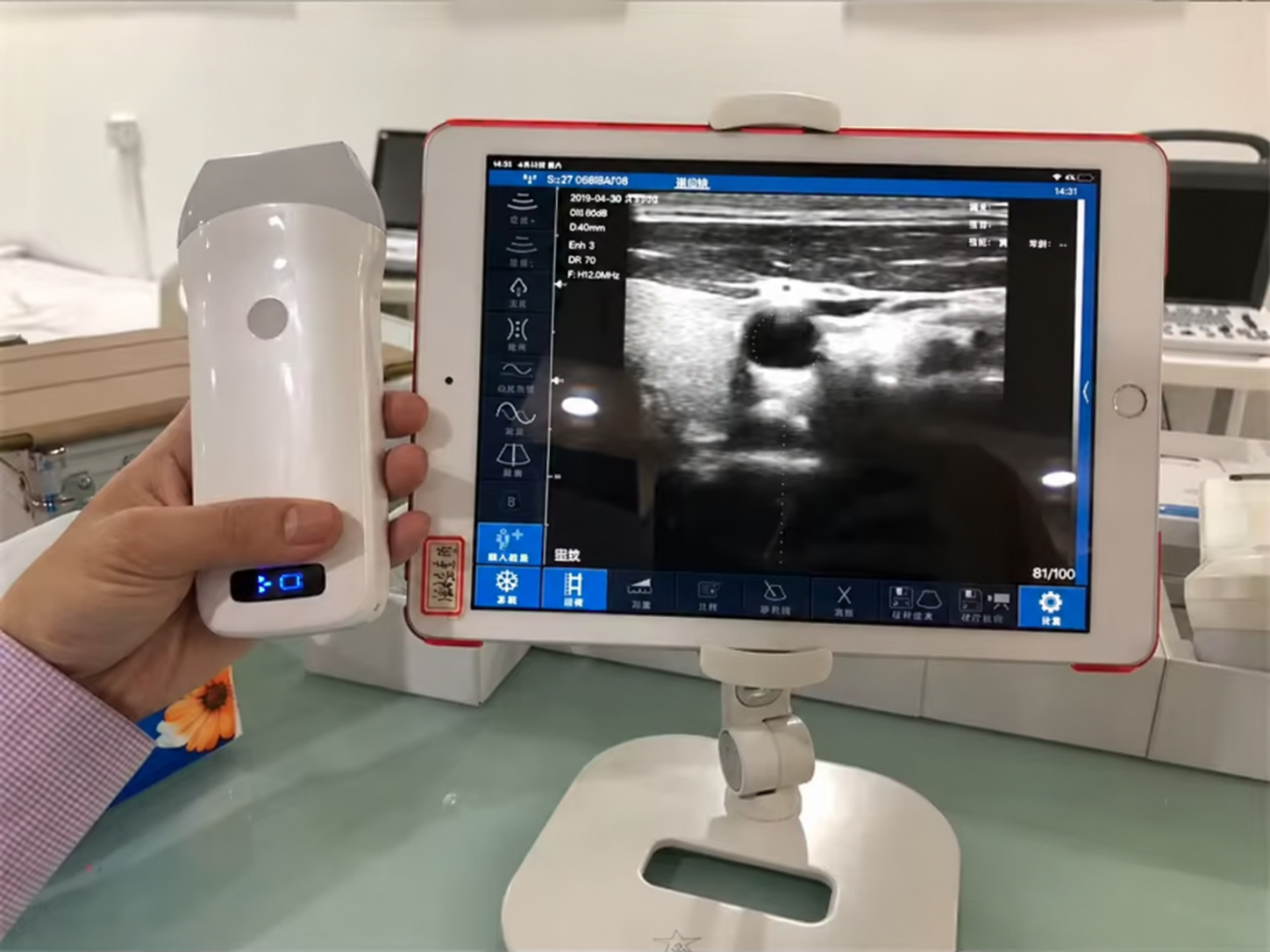

CGU-L Wireless Handheld Linear Ultrasound Scanner image 4

Overview

Product Overview

CGU-L is a wireless handheld linear ultrasound scanner designed for vascular, musculoskeletal, soft tissue, nerve, and other superficial imaging applications. The device connects wirelessly to smartphones, tablets, and computers, delivering high-resolution ultrasound imaging for point-of-care diagnosis, bedside examinations, and mobile healthcare services.

Key Features

High-Frequency Linear Imaging: Equipped with 7.5MHz and 10MHz frequencies for detailed visualization of superficial structures.
Wireless Connectivity: Connects directly to smartphones, tablets, and compatible devices via WiFi.
Portable Handheld Design: Compact and lightweight construction for convenient use in clinical and mobile environments.
Extended Battery Performance: Built-in 4200mAh rechargeable lithium battery supports up to 3 hours of continuous operation.
Real-Time Ultrasound Imaging: Provides clear, responsive, and reliable ultrasound images during examinations.
Multi-Platform Compatibility: Compatible with Android, iOS, and Windows operating systems.
Image and Video Management: Allows storage and review of ultrasound images and videos directly on connected devices.
Point-of-Care Ultrasound Solution: Suitable for bedside assessments, emergency care, outpatient clinics, and field applications.

Applications

Vascular Imaging
Vein Assessment
Arterial Examination
Vascular Access Guidance
Musculoskeletal Imaging
Tendon Evaluation
Ligament Assessment
Joint Examination
Soft Tissue Imaging
Anesthesia

Technical Specifications

Model	CGU-L
Probe Type	Linear Array
Scan Mode	Electronic Linear Array
Frequency	7.5MHz / 10MHz
Elements	128
Channels	32
Scanning Depth	20-55mm
Scan Width	L40
Display Device	Smartphone / Tablet
Display Modes	B, B/M
Gray Scale	256 Levels
Noise Reduction	0 / 1 / 2 / 3 / 4
Gain	30dB - 105dB
Dynamic Range	40 - 110
Measurements	Distance, Area, Obstetrics and Others
Battery Capacity	4200mAh
Working Time	Up to 3 Hours
Operating System	Android / iOS / Windows
Dimensions	156 × 60 × 20 mm
Weight	230g

Standard Configuration

CGU-L Wireless Ultrasound Probe
USB Charging Cable
Ultrasound Software
User Manual

Optional Accessories

Carrying Bag
Aluminum Case
Tablet Holder
Android Tablet
iPad
Ultrasound Cart
Needle Guide
