Veterinary Endoscopy System
A compact Full HD platform integrating image processing, LED cold light, recording, workstation software and report management for comprehensive veterinary endoscopy.

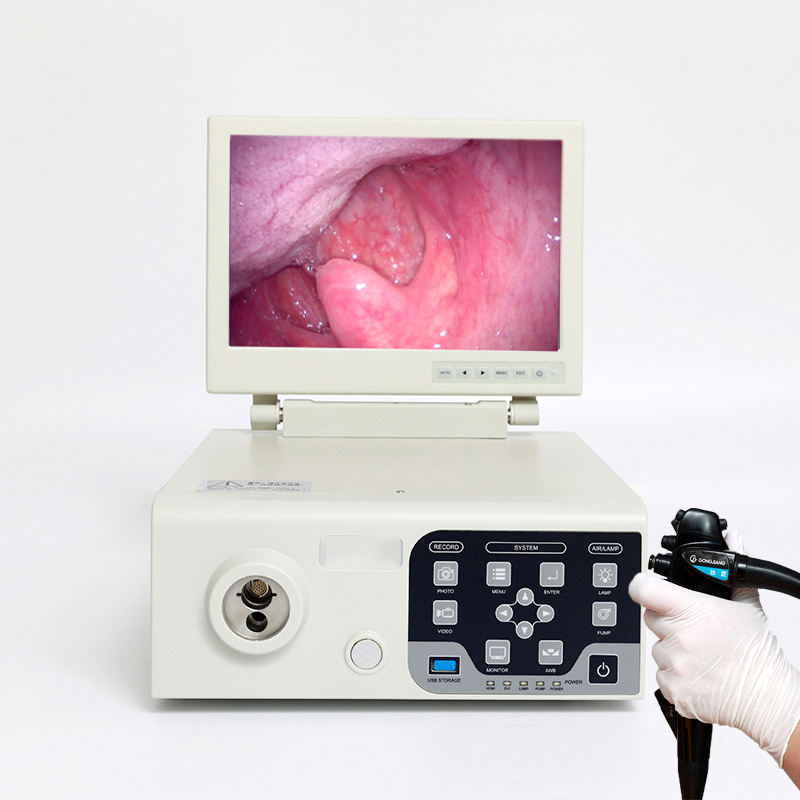

CGV-300H is a Full HD veterinary endoscopy workstation designed for comprehensive animal diagnosis and minimally invasive procedures.
The system integrates Full HD image processing, an LED cold light source, image capture, video recording, workstation software and report management into one compact platform.

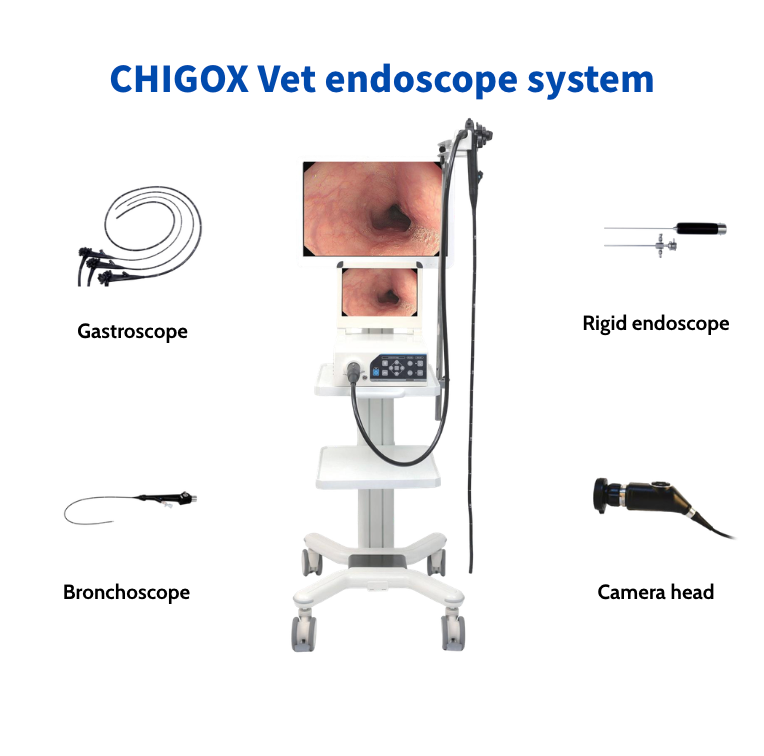

It is compatible with veterinary gastrointestinal endoscopes, bronchoscopes, rigid endoscopes and HD camera heads, providing a complete endoscopy solution for veterinary hospitals, specialty clinics and research institutions.
| Series | Available Models | Outer Diameter | Working Channel | Working Length | Tip Deflection | Field of View | Depth of Field | Notes |
|---|---|---|---|---|---|---|---|---|
| Video GI Endoscope | VET-1206 / VET-1508 / VET-1509B / VET-3010 / VET-3313 / VET-3513 | 6.3 / 8.3 / 8.9 / 9.8 / 12.9 / 12.9 mm | 2.0 / 2.8 / 2.8 / 2.8 / 3.7 / 3.7 mm | 1200 / 1500 / 1500 / 3000 / 3300 / 3500 mm | U210° D90° L100° R100° / U180° D180° L160° R160° | 120° | 3–100 mm | Auxiliary water channel available on selected models |
| Video Bronchoscope | VET-03 / VET-04 / VET-04B | 3.0 / 3.9 / 4.5 mm | 1.2 / 1.5 / 2.0 mm | 600 / 1000 / 600 mm | U180° D180° / L120° R120° | 120° | 2–50 mm | Small animal bronchoscopy |
| Video Rigid Endoscope | ENT / Arthroscope / Laparoscope / Cystoscope / Sinuscope / Hysteroscope / Ureteroscope / Dental Endoscope | Refer to dedicated Rigid Endoscope Series | Refer to dedicated Rigid Endoscope Series | Multiple specifications available | Various viewing angles | Multiple options | Multiple options | Compatible with all supported rigid endoscope series |
| HD Camera Head | HD-80 / FHD-310 | CMOS 1/2.8" / 1/1.8" | N/A | Standard 25 mm Lens | N/A | Full HD | N/A | 1920 × 1080 resolution |
| Item | Specification |
|---|---|
| Model | CGV-300H |
| Image Output | 1080P Full HD |
| Display | 12-inch HD Display |
| Snapshot | Supported |
| Video Recording | Supported |
| Compatible Devices | GI Endoscope / Bronchoscope / Rigid Endoscope / HD Camera Head |
| White Balance | Automatic |
| RGB Adjustment | -50 ~ +50 |
| Image Adjustment | Brightness / Saturation / Contrast |
| LED Cold Light Source | 80W |
| LED Lifetime | 20,000 Hours |
| Air Pressure | 0.06 MPa |
| Air Flow | 9 L/min |
| Power Supply | AC100–240V 50/60Hz |
| Dimensions | 300 × 325 × 138 mm |
| Net Weight | 8.1 kg |
| Language | Chinese / English / Portuguese / Spanish / Russian / French |
Veterinary

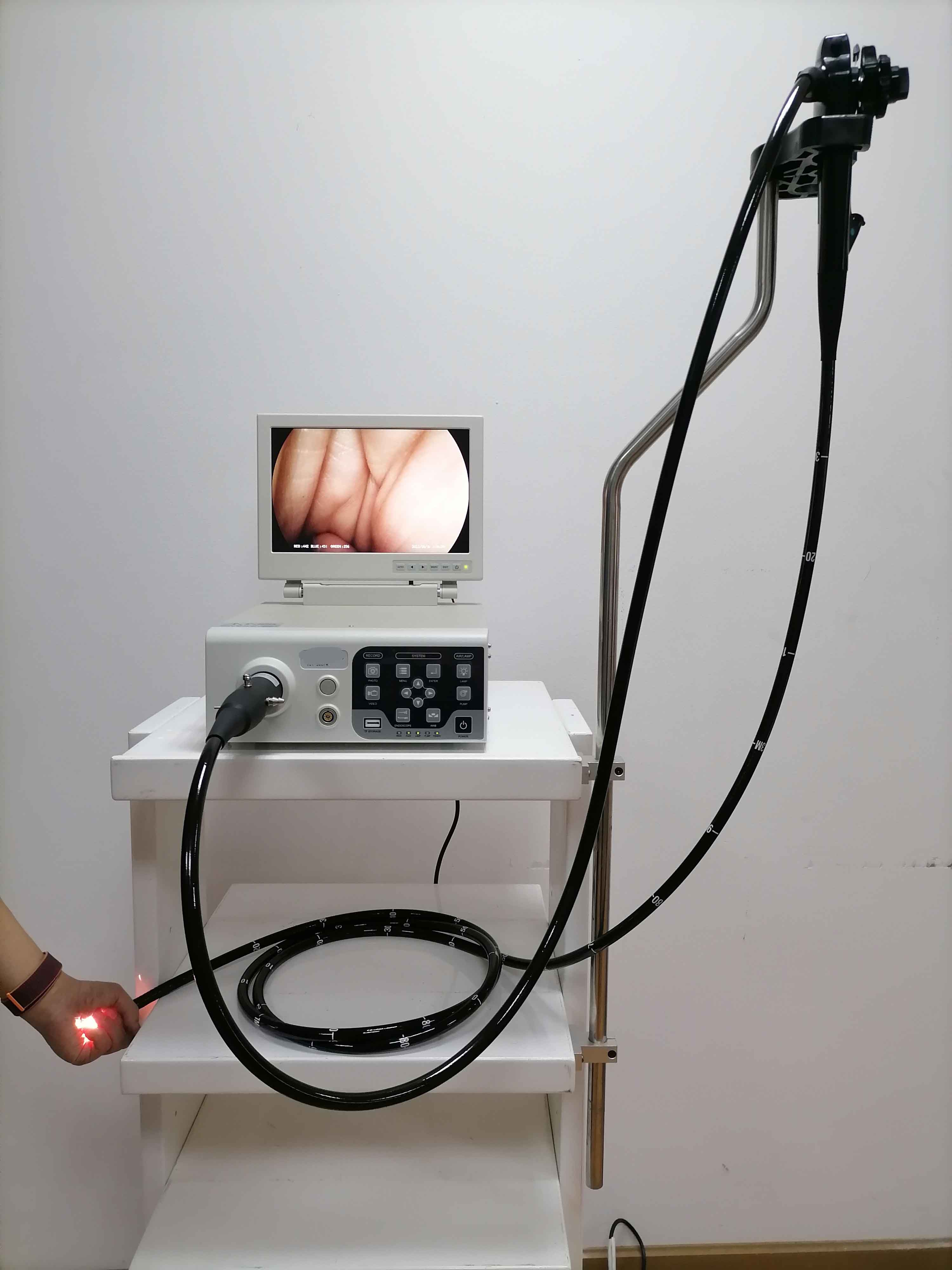

CGV-300H is a portable high-definition veterinary endoscopy platform integrating a video processor, LED cold light source, air/water supply system and 12-inch monitor.
